TSD
Temperature sensor
Infrared sensor with CAN interface for non-contact measurement of surface temperatures.
- CAN interface
- Field of vision 10°
- Circular measuring point
- Wide measuring range for a wide range of applications
- Compact size without moving parts
Detailed information
Infrared sensor with CAN interface for non-contact measurement of surface temperatures.
Its compact size and robust design make it particularly interesting for mobile applications. Its wide measuring range enables a wide range of applications. The sensor can be integrated digitally via CAN bus.
Special features:
- No moving parts
- Measuring angle 10°
- Measuring range -70 to 380° C
- Protection category IP69k
- Operating temperature -40 to 85° C
- WxHxD: 40x25x112 mm
Area of application: Mobile machines for road construction (e.g. on an asphalt roller)
TSD:
| Overall dimensions | (W/H/D) 50 mm x 25 mm x 109 mm (without wedge) |
| Housing / protection category | Aluminum housing, protection category IP69k (DIN EN 60529) |
| Weight | approx. 0.3 kg |
| Connections | Built-in plug 5-pin. M12 |
| Supply | UB = 8..32 V (reverse polarity protected), approx. 16 mA at 12 V |
| Sensor | Field of view: 10° Measuring range: -50° C to 360° C Accuracy: ±0.5° C (Tobject. = Tamb. = 0..50° C) ±2°C (Tobject. = 0..180° C Tamb. = 0..85° C) |
| Signal transmitter | 1x optical signal transmitter (housing LED) |
| Interfaces | 1x CAN (maximum baud rate: 1 Mbit/s) |
| Operating temperature range | -40..85° C (housing temperature) |
| EMC | Road vehicles: – Directive 2014/30/EU – ISO 7637-1 – ISO 7637-2 – ISO 7637-3 Construction machinery: – DIN EN 13766-1 Agricultural and forestry machinery: – DIN EN ISO 14982 Industrial use: – DIN EN 61000-6-2 – DIN EN 61000-6-4 |
| Mechanical, climatic resilience | Oscillation: – DIN EN 60068-2-6 Shock, continuous shock: – DIN EN 60068-2-27 Shocks due to rough handling: – DIN EN 60068-2-31 Cold: – DIN EN 60068-2-1 Dry heat: – DIN EN 60068-2-2 Temperature changes: – DIN EN 60068-2-14 Damp heat: – DIN EN 60068-2-30 |

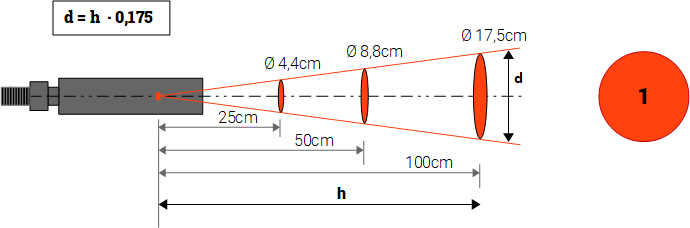

TSD in mm
